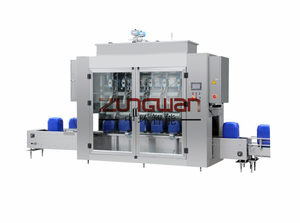

Abstract：The utility model discloses a full -automatic following type liquid filling machine, include bottle body conveyor belt mechanism, bottle distance dispersion mechanism, follow filling mechanism and alignment sensor, bottle distance dispersion mechanism with follow the middle part of filling mechanism in bottle body conveyor belt mechanism and set gradually along bottle direction of delivery, follow filling mechanism and be equipped with two and irritate the material device, irritate the material device for two and successively follow two adjacent bottles motions in the bottle body conveyor belt mechanism to with the material respectively in filling to the bottle body conveyor belt mechanism in two adjacent bottles, the alignment sensor is equipped with two sets ofly, and two sets of location sensor settings are in bottle body conveyor belt mechanism to lie in the one side of following filling mechanism. The utility model discloses a following two of filling mechanism and irritating the material device and can follow the bottle and move irritating the material in -process, the in -process bottle of irritating the material need not stop, and production efficiency is high, and occupation space is little, greatly reduced equipment cost.
Main performance parameter :
Filling capacity | 100ML-1000ML ; 1L-5L; |
Power supply | 220V/50HZ 3.5Kw; |
Filling error | ≤±0.5 grams; |
Filling method | servo piston following type; |
Number of filling heads | 2 heads / 4 heads |
Production speed | 1000-3600 bottles/hour |
Gas source requirements | stable gas source of 0.6Mpa-0.8Mpa |
