ZHT-A Fully Automatic Inline Cap Tightening Machine

Share to:

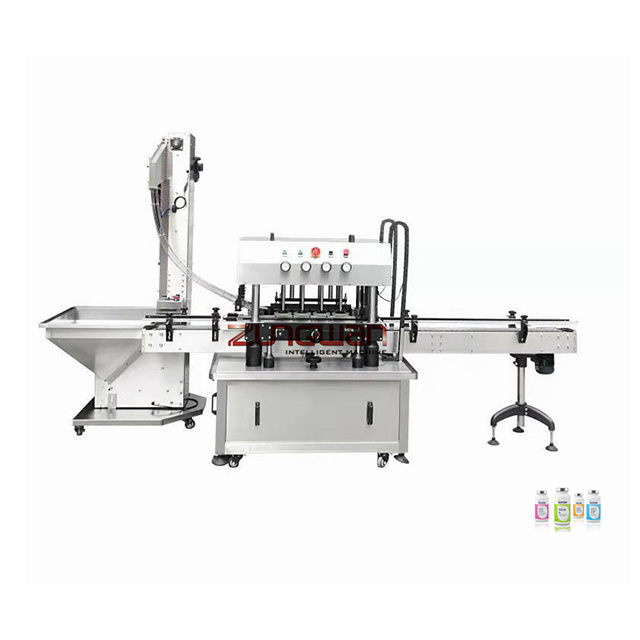

ZHT-A Fully Automatic Inline Cap Tightening Machine

This machine is suitable for various material and different shape containers. Such as plastic bottles, glass bottles, and metal bottles. If we want to change different material,bottles or caps for capping, we don’t need replace any components, just adjusting the location of several components. No caps will be dispatched, if there is no bottle in the place. Cap elevator, conveyor, cap tightening machine and bottle clamping strap can be adjusted to meet the tightening requirements for various bottles and caps . The machine is made of excellent quality stainless steel, also applied to GMP standard requirement. (Custom-tailoring diversified for special specification)

Current supply: 220 V ;50Hz (or according to client voltage requirement)

Power: 2.2kw

Production speed: 0~6000 bottles/hour

Container month diameter: Φ40mm-Φ100mm

Suitable Cap diameter: Φ20mm-Φ50mm

Machine Weight : 650 KGS 7. Machine Dimension (L×W×H): 2000mm x 850mm x 2050mm
