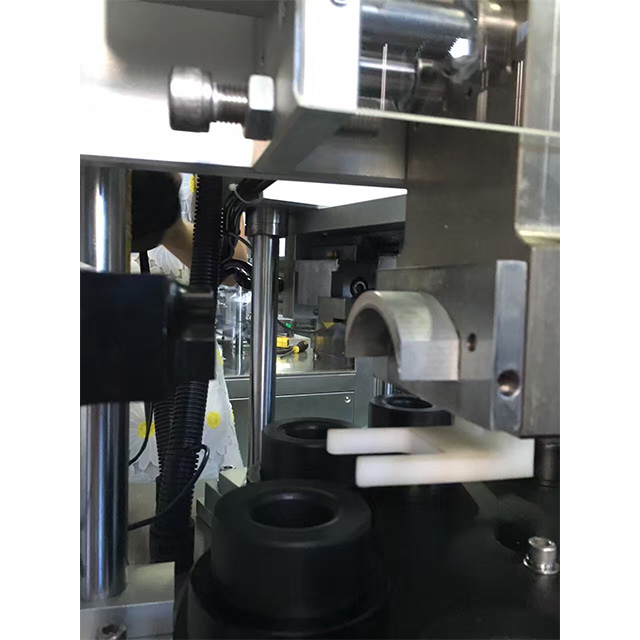

Automatic ZHF-006 Ultrasonic Tube  Filling Sealing Machine

Share to:

ZHF-006 Type ultrasonic end sealing machine adopts newest module circuit, working performance is stable, the efficient is high, and all the components adopt famous brand. Under our company’s elaborate designing, we have produced various advanced ultrasonic series products. And mainly used for toothpaste, cosmetics, medicine, food, in dustrial articles, and various sealing for soft tube.

  • ZHF-006
  • ZUNGWAN
Quantity:

ZHF-006 Ultrasonic Tube  Filling Sealing Machine


ZH-006 Ultrasonic sealing machine is advanced equipment for plastic tube sealing  and aluminum plastic tube sealing. It uses ultrasonic seal the plastic tube heat shock effect produced by the transducer and to rapidly melt adhesive.


No need to add any supplements,even if the surface contamination, but also will not affect the sealing result.


Function:

Automatic tube orientation

Automatic Filling

Automatic Sealing

Automatic Date printing

Automatic Trimming

Automatic tubes output


Technical Parameters

Model

ZH-006

Frequency

20KHZ

Power

2000W

Power Supply

AC220V Single phase

Filling Range

A: 6-60ml  B:10-120ml  C: 25-250ml  D: 250-500ml

Sealing Dia

5-50mm (Adjustable)

Max.Height

0-200mm

Capacity

20-35tubes/min

N.W

230kgs

Dimension

L1300*W900*H1550MM
