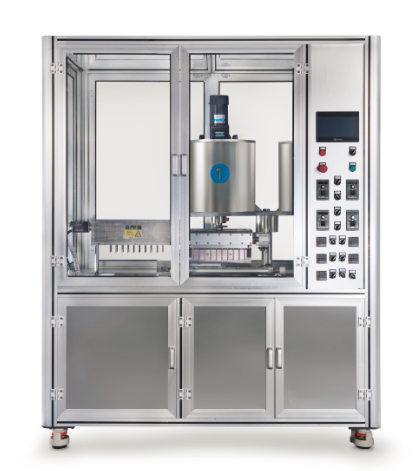

ZH-25L2-10A 10cavities silicone mould lipstick filling machine

Share to:
Automatic Lipstick Filling Machine. Lipsticks, lip balms and lip glosses are very popular cosmetic products that require highest quality in the end product.
  • ​ZH-25L2-10A
  • ZUNGWAN
Quantity:

ZH-25L2-10A is an automatic designed for the production of hot filling mould products such as high quality lipstick, lip balm, cosmetic pencil etc..

For filling, have 3 mainly part:

1st: pre-heating for the aluminum mould or silicone or silicone mould.( avoid the hole on the lipstick, material can fluid to filling)

2nd:filling device( from down to up filling, can avoid air bubble.)

3rd after heating function, this is deal with the hole of the lipstick after filling, thus can added the lipstick drawing force.

Capacity

·45-60 lipsticks/min (10 nozzle filling heads)

Features

·2 sets of 3 layers of jacketed vessels 25L capacity with stirrer (vessels also can choose 30l-100L)

When one is working, another one is heating, no effect the capacity.

·Servo motor controlled dosing pump

·Dosing volume and pump speed controlled by digital input , Accuracy +/-0.5%

·Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over

·Mould raise/lower system for bottom-up filling

·Servo controlled mould raise /lower system

·Mould pre and post heating(before and after filling)

·20-30 moulds/cycle time



Parameters:



Voltage

AC220V/50Hz

Operator

1 person

Weight

600kg(old)

Body material

T651+SUS304

Capacity

45-60pcs/min(10 Nozzle)

Vessel volume

25L/set*2-option(30l-100L)

Display

              PLC-Mitsubishi

No. Of nozzle

               10holders

Power consumption

           7-11.5kw(max heating)

Production line

               Linear

Air input

            6-8kg/cm2

Dimensions

          1600*1300*1953(mm)
