ZHY-60YL Small Tube Filling And Sealing Machine

Share to:

Compact design, tube load by hand, and driving part fully closed.The whole process of filling, folding (heating), sealing, printing, cutting, and finished products  output all  finished automatically.

  • ZHY-60YL
  • ZUNGWAN
Quantity:

Compact design and auto tube feed. Driving part fully-closed.

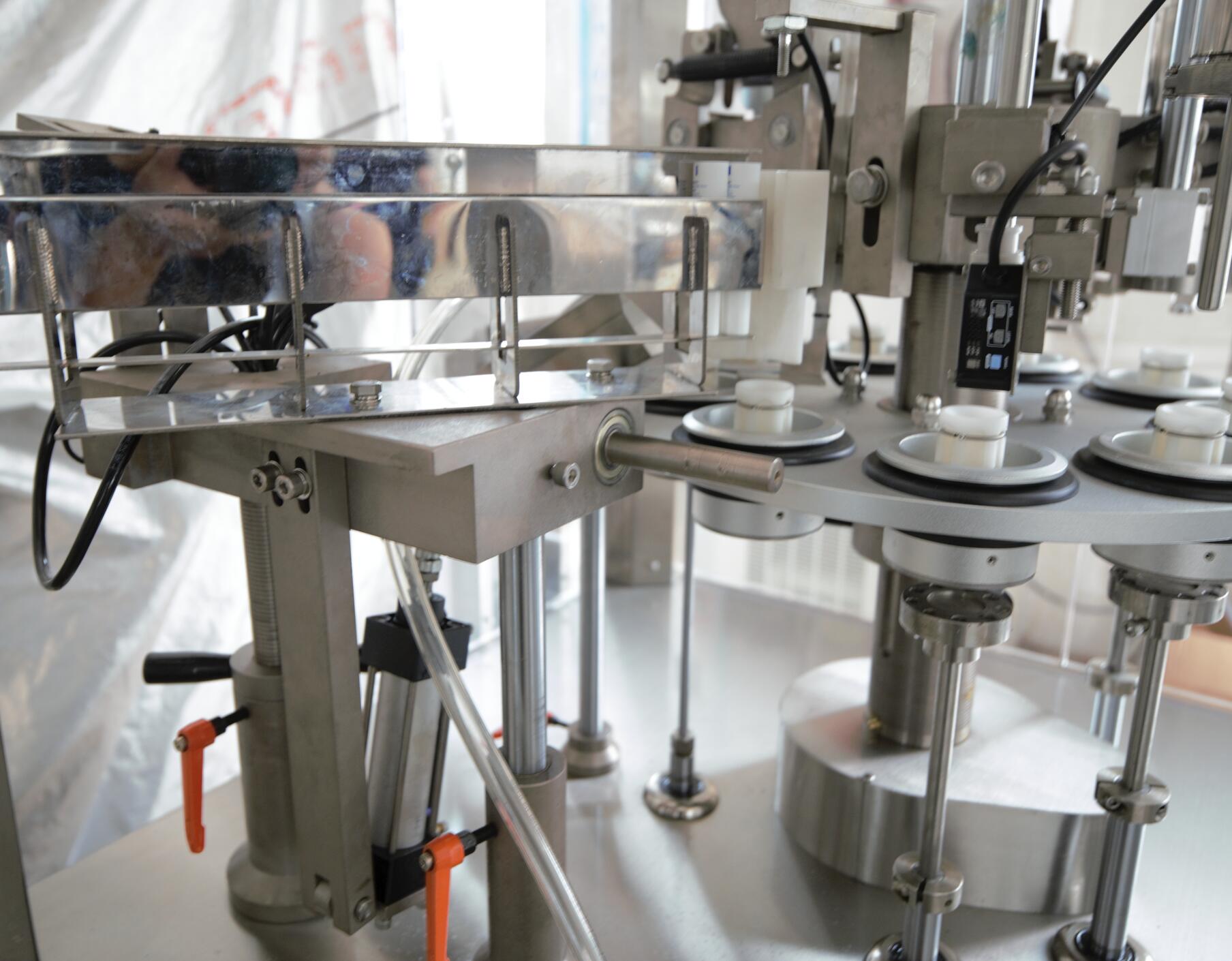

Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.

Tube washing and feeding conducted pneumatically, accurate and reliable.

Auto picketage affected by photoelectric inductance.

Easy adjustment and dismantling

Intelligent temp control and cooling system makes operation easy and sealing reliable.

With easy and quick adjustment, it is suitable for using multiple kinds of soft tubes for filling.

The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to CMP for medicine manufacture.

With safety device, the machine is shut down when the door is opened and filling carried out only with tubes fed. Overload protection provided.

Technical Parameter

Filling volume

5-250ml/unit (Adjustable)

Filling accuracy

≦±1﹪

Capacity

1800-2400unit/hour, Adjustable

Tube diameter

Φ10-50 mm

Tube length

210mm (Max. length)

Hopper volume

40L

Power

380V/220V (Optional)

Air pressure

0.4-0.6 MPa

Equipped motor

1.1KW

Machine power

5kw

Inner wind motor

0.37kw

Convulsions motor

0.37kw

Dimension

1900×850×1900(mm)

Weight

About 850 Kg
