Understanding the mechanics of a tube filling and sealing machine is rarely just for curiosity. It represents a critical step in equipment evaluation and procurement. Poorly specified machinery leads to severe production bottlenecks. You might face frustrating seal failures, inaccurate dosing that causes costly product giveaway, or prolonged changeover downtime. This article transitions your focus from basic operational overviews to deeper mechanical insights. We will explore how smart mechanical design directly impacts your production throughput, material compatibility, and overall equipment effectiveness (OEE). By grasping these engineering fundamentals, you can make informed decisions. You will learn to evaluate dosing precision, understand different sealing technologies, and optimize automated changeovers. Ultimately, this knowledge ensures you select equipment tailored precisely to your manufacturing needs, safeguarding both product integrity and operational efficiency.

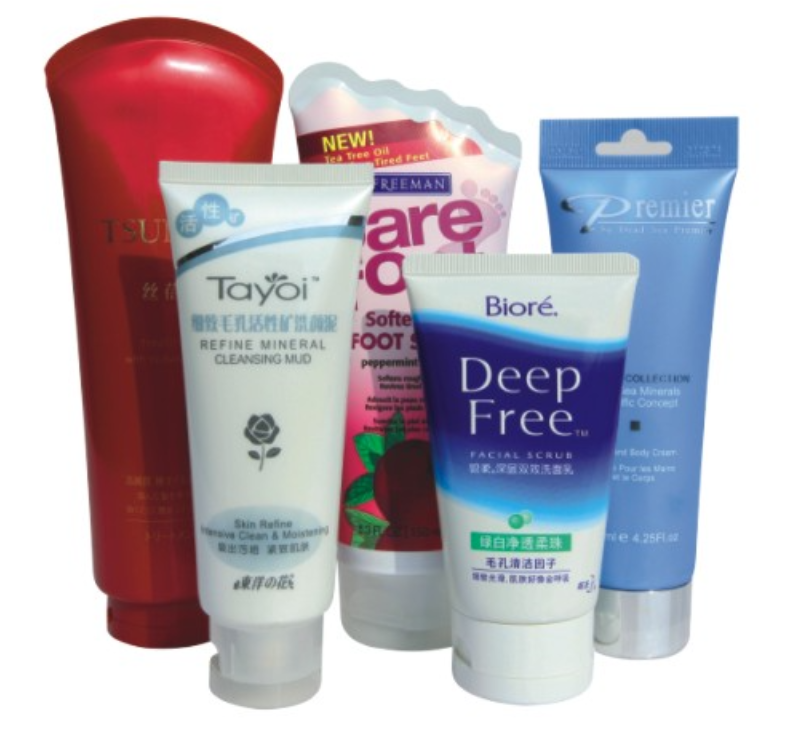

Machine working principles dictate material compatibility; different sealing heads are required for plastic, laminate, and aluminum tubes.
The dosing mechanism (e.g., piston vs. volumetric) determines fill accuracy and handles varying product viscosities (from serums to thick pastes).
Automated changeovers and PLC-driven fault detection are the primary differentiators between entry-level units and scalable, high-yield production systems.
Evaluating a machine requires physical material testing and validation of seal integrity under operational stress.
Every successful production run starts with reliable mechanical synchronization. Facility managers must map the step-by-step mechanical process to distinct production success criteria. These criteria include overall processing speed, tube orientation accuracy, and defect reduction. When you evaluate tube filling equipment, you must scrutinize four essential operational stages.
Step 1: Tube Loading & Feeding

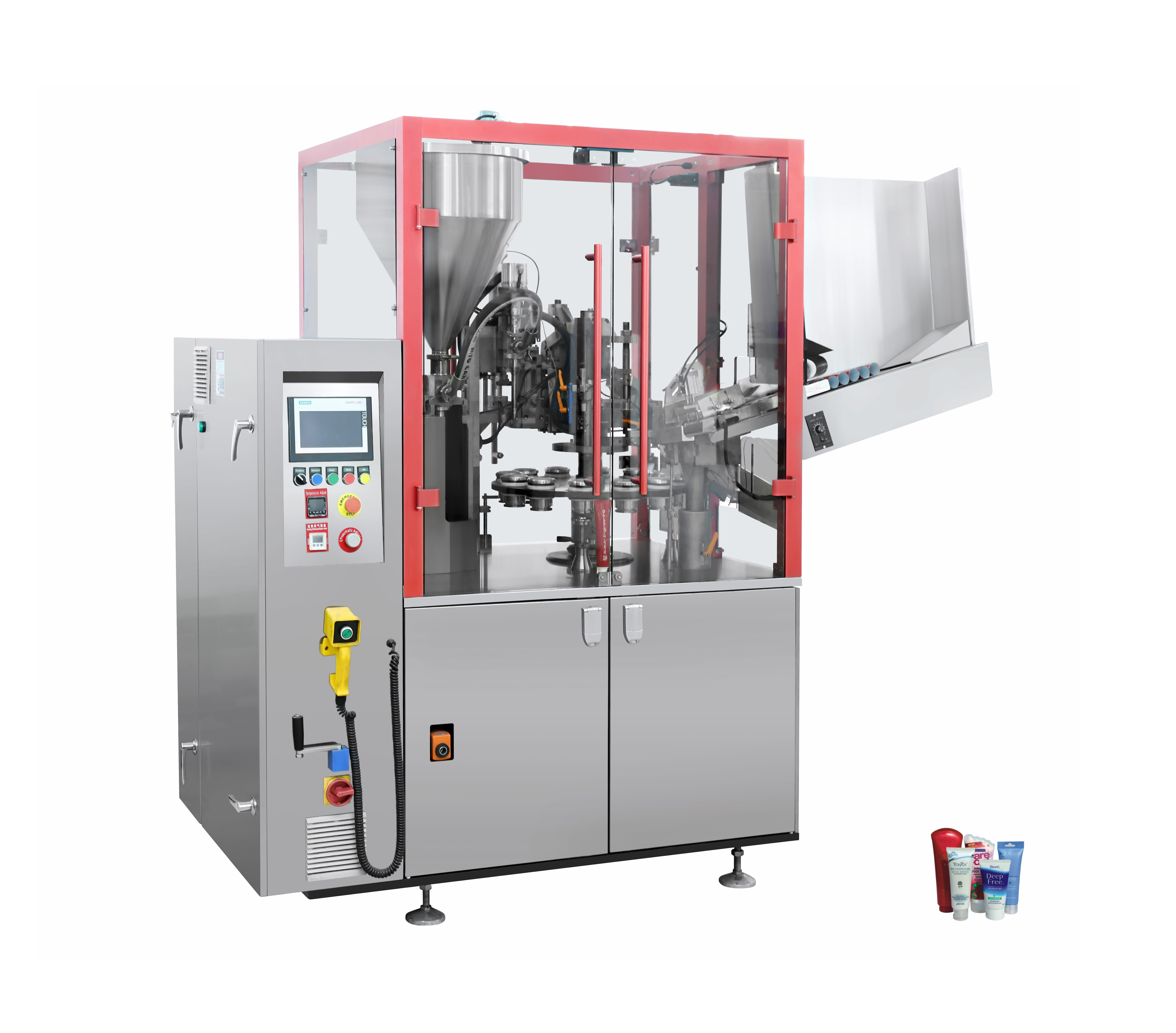

Mechanics: The process begins when cassette systems or automatic hoppers feed empty tubes into rotary indexing tables. Advanced machines utilize vacuum arms to gently pull individual tubes from the chute and deposit them into holding pucks on the rotary dial.
Evaluation Lens: Focus closely on the risk of tube damage during this feeding stage. Flimsy feeding mechanisms can dent aluminum tubes or scratch glossy plastic laminates. You should also verify the sensor accuracy for detecting misfeeds. If a puck sits empty, the machine must recognize this instantly to pause the filling nozzle and prevent messy spills.
Step 2: Print Registration & Orientation
Mechanics: Once loaded, tubes rotate to the orientation station. Here, high-resolution photoelectric sensors scan the tube surface. They look for a specific printed eye-mark. Stepper motors then rotate each tube on its axis, aligning the eye-mark perfectly. This ensures the artwork faces the correct direction before the sealing jaws clamp down.
Evaluation Lens: Examine the rotational speed of the stepper motors. Sluggish motors will throttle your entire production line. Additionally, test the sensor's sensitivity to low-contrast packaging artwork. Sensors must distinguish between subtle color gradients to avoid misaligned seals.
Step 3: Dosing (Filling)
Mechanics: High-yield machines utilize bottom-up filling techniques. They employ diving nozzles that descend to the very bottom of the empty tube. As the product flows, the nozzle slowly rises. This controlled motion prevents trapped air pockets from forming inside viscous products.
Evaluation Lens: Your primary concern here is the prevention of splashing or product tailing. Tailing occurs when a string of product clings to the nozzle and drops onto the inner walls of the tube. Any product that lands in the top seal zone will inevitably compromise the final seal integrity.
Step 4: Sealing, Coding, and Ejection
Mechanics: The final stage involves closing the tube top securely. Depending on the substrate, jaws heat, crimp, or fold the material. Next, a coding station embosses batch codes and expiration dates directly into the seal. Finally, a trimming blade slices off excess top material for a clean finish before the machine automatically ejects the tube.
Evaluation Lens: Assess the trim waste management system. The machine must vacuum or sweep away plastic shards to prevent mechanical jams. Furthermore, inspect the consistency of the seal aesthetics. Uneven cuts or warped embossing reflect poor jaw calibration.
Dosing mechanics play a defining role in product loss reduction and formula integrity. You cannot use a one-size-fits-all approach to pumping. The physical characteristics of your product dictate the mechanical requirements of the filling station.
Mechanics: Piston pumps operate on the principle of volumetric displacement. A mechanically driven piston draws a precise volume of product into a cylinder. It then forces that exact volume through the nozzle into the tube.
Application: These robust systems are ideal for thick, highly viscous products. Consider how a toothpaste tube filler operates. It relies on heavy-duty pneumatic piston pumps to handle dense, abrasive formulas. Toothpaste often contains silica or baking soda. The piston pump pushes these abrasive particles effortlessly without rapidly degrading the internal pump seals.
Mechanics: Rotary pumps provide continuous flow measurement. Interlocking gears create a suction force that pulls liquid through the system, measuring it by the rotational speed and time rather than a fixed cylinder volume.
Application: These pumps are best suited for liquids and low-viscosity lotions. They offer exceptionally high processing speeds. However, they remain highly sensitive to particulate matter. If your formula includes exfoliating beads or botanical chunks, a gear pump will likely crush them or jam completely.
When selecting your dosing mechanics, you must prioritize hygiene and precision. Look for advanced Clean-in-Place (CIP) and Sterilize-in-Place (SIP) capabilities. These features allow operators to flush hot water and sterilizing chemicals through the pump pathways without dismantling the heavy mechanics.
Pay close attention to the nozzle shut-off valve design. You generally choose between blow-off valves and mechanical shut-off valves. A mechanical shut-off uses a physical pin to block the nozzle opening instantly, physically snipping the product stream. This prevents lingering drips from contaminating the upper seal area.
Pump Type | Mechanical Principle | Ideal Viscosity | Key Advantage |
|---|---|---|---|
Piston Pump | Volumetric displacement via cylinder | High (Creams, pastes, gels) | Handles abrasive materials easily |
Rotary/Gear Pump | Continuous flow via interlocking gears | Low (Liquids, light lotions, serums) | Exceptional high-speed processing |
Preventing catastrophic batch failures requires you to align the sealing mechanism strictly with the tube substrate. A mismatch here will ruin thousands of products. Different materials require vastly different thermodynamic or mechanical applications to achieve a hermetic seal.
Mechanics: Hot air sealing uses directed nozzles that blast hot air upwards against the inside of the tube wall. This rapidly heats the inner plastic layers to a molten state. Immediately following this heat application, cold clamping jaws press the molten layers together, forging a permanent welded seal.
Evaluation Lens: This is the established industry standard for a plastic tube filling and sealing machine. When evaluating this technology, look closely for precise digital temperature controls. Inadequate heat produces weak, easily ruptured welds. Conversely, excessive heat causes scorching, bubbling, or aesthetic warping on the outside of the tube.
Mechanics: Ultrasonic sealing avoids direct hot air. Instead, an acoustic horn vibrates at an incredibly high frequency against the tube material. This molecular friction creates localized heat strictly from within the material itself. The plastic melts at the targeted friction point and fuses under clamping pressure.
Evaluation Lens: This method generates very low external heat radiation. It proves ideal for packaging heat-sensitive cosmetics or volatile pharmaceutical ointments that might degrade if exposed to hot air blasts. It also handles foil-laminate tubes with excellent reliability.
Mechanics: Aluminum cannot be melted shut in a traditional packaging environment. It requires mechanical metal folding. Heavy-duty crimping jaws perform sequential folds on the open end. Standard machines execute double, triple, or complex saddle folds to lock the metal layers together.
Evaluation Lens: When inspecting an ultrasonic metal tube sealer or a mechanical crimper, you must ensure it produces zero micro-fractures. If the folding jaws are too aggressive, they will crack the thin internal protective lining of the aluminum tube. This ruins the hermetic barrier, allowing oxygen to spoil the product inside.
Always calibrate sealing temperatures and jaw pressures at the start of every shift. A change in ambient factory humidity or temperature can subtly alter the melting point of plastic tube substrates. Frequent burst testing of random sealed samples ensures ongoing compliance with quality standards.
You must assess how a machine’s fundamental design impacts ongoing labor utilization and future production scale. An inexpensive machine becomes a burden if it requires hours to adjust between different product runs.
Criteria: Operational efficiency hinges on changeover speed. You must evaluate how quickly operators can swap holding pucks, diving nozzles, and sealing jaws when changing tube diameters or product formulas. Modern, scalable machines feature tool-less changeover designs. Operators use quick-release levers and snap-in components rather than wrenches and hex keys. Your facility should aim for a complete mechanical changeover in under 30 minutes.
Criteria: Reliable control architecture prevents daily downtime. Look for robust Siemens or Allen-Bradley PLC integrations. The interface should feature comprehensive recipe management systems. A recipe system saves optimal temperature settings, rotary speeds, and fill-volume parameters for specific products. Operators can press a button for instant recall, eliminating manual guesswork during setup.
Criteria: Regulatory compliance requires rigorous sanitary engineering. Ensure all contact parts use 316L stainless steel, which resists corrosion from harsh pharmaceutical or cosmetic chemicals. The machine must adhere to FDA and GMP compliance standards. Inspect the internal piping for dead legs—sections of pipe where fluid can stagnate. There should be no hidden threads or sharp internal corners where bacteria can harbor and multiply.
Buyers frequently underestimate the importance of accessible validation ports. Without these ports, quality assurance teams struggle to insert temperature probes or take sterile swab samples during SIP processes, leading to failed compliance audits.
Facility managers and buyers need an actionable decision framework to navigate the crowded equipment market. Use this detailed checklist to secure a machine that genuinely fits your production floor.
Define Output Requirements realistically: Do not rely solely on the machine's maximum theoretical speed listed in the brochure. Calculate the required tubes per minute (TPM) against your actual shift OEE. Factor in mandatory breaks, daily cleaning cycles, and scheduled maintenance. A machine rated for 60 TPM might only yield 45 TPM in practical, sustained operation.
Conduct Factory Acceptance Testing (FAT): Never finalize a purchase without a rigorous FAT. Ship your specific product formula and your exact empty tube materials to the vendor's facility. Run a continuous test batch on their machine. This physical trial uncovers hidden viscosity issues or substrate incompatibilities before the machine reaches your floor.
Verify Vendor Support & Parts Availability: Complex machinery requires ongoing maintenance. Evaluate the vendor's service level agreement (SLA) for replacement wear parts. You will regularly need new heating elements, cutting blades, and Teflon bands. Ensure the manufacturer offers prompt domestic technical support to prevent minor electrical faults from causing days of downtime.
Knowing how the equipment mechanically functions is the absolute foundation of specifying a machine that delivers high yield and low downtime. When you understand the relationship between piston pumps and viscosity, or the difference between hot air and ultrasonic sealing, you eliminate the guesswork from procurement.
Your next step should be highly actionable. Compile your exact material specifications, including tube samples, diameter dimensions, and product viscosity data. Reach out to shortlisted manufacturers and request a customized mechanical demonstration. Demand a sample run using your actual formula. By prioritizing engineering realities over basic features, you will secure machinery that optimizes your production line for years to come.
A: Mechanically, modular machines can handle both by swapping the sealing head—from hot air nozzles to metal crimping jaws. However, operationally, this is often inefficient. The changeover time required to swap heating components, align folding jaws, and recalibrate sensors can take hours, significantly reducing your daily production throughput.
A: Realistic engineering benchmarks for filling accuracy typically range from ±0.5% to ±1% of the target volume. This tolerance depends heavily on the product's viscosity, temperature stability during the run, and the specific design of the pump (e.g., servo-driven pistons generally offer tighter tolerances than pneumatic pistons).
A: Tubes usually fail because product splashes into the seal zone during dosing, preventing the plastic or metal from fusing properly. Machines mitigate this risk by using diving nozzles that fill from the bottom up. They also utilize mechanical shut-off valves or suck-back features to eliminate drips before the tube reaches the sealing jaws.
