Views: 0 Author: Site Editor Publish Time: 2026-09-15 Origin: Site
For pharmaceutical and biopharma buyers, balancing high-throughput commercial production and uncompromising sterility represents a daily challenge. Achieving strict cGMP compliance remains the core objective across all manufacturing operations. Acquiring a modern nasal spray filling machine represents far more than a simple hardware purchase. It serves as a critical path to regulatory approval, yield optimization, and long-term risk mitigation. Production facilities simply cannot afford faulty dosing or microbial contamination. Therefore, the baseline expectation is clear today. Modern systems must seamlessly integrate filling, capping, and rigorous quality control. They must achieve this continuous workflow without sacrificing rapid format changeover efficiency. In this comprehensive guide, you will discover how to evaluate precision dosing systems. We compare pump technologies and assess different line architectures. We also explore crucial validation standards and compliance features. This knowledge helps you build a resilient, zero-defect packaging line.

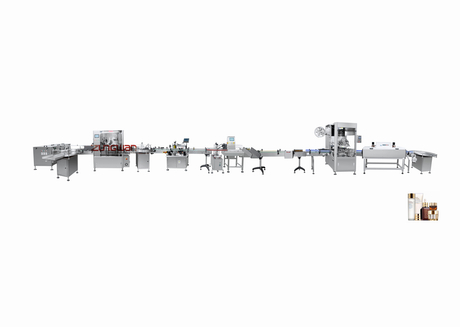

Integrated Line Efficiency: Transitioning from fragmented equipment to a unified pharmaceutical filling and capping machine line reduces operator intervention and contamination risks.
Pump Technology Dictates Yield: Selecting between peristaltic and piston pumps based on fluid viscosity and micro-dosing precision is the primary driver of batch profitability.
Compliance as a Feature: cGMP design requires verifiable cleanability (CIP/SIP), 316L stainless steel contact parts, and comprehensive IQ/OQ/PQ documentation.
Scalability Lenses: Evaluating rotary versus inline architectures depends heavily on projected batch sizes, footprint constraints, and format changeover frequency.
High-value active pharmaceutical ingredients (APIs) demand absolute precision. Micro-dosing inaccuracies quickly destroy batch profitability. Overfilling even by a fraction of a milliliter causes massive financial loss over long commercial runs. Conversely, underfilling triggers immediate regulatory rejection and product recalls. You must control yield loss tightly. Every drop of API carries immense value.
Cross-contamination poses another massive threat to your business. Inadequate washdown capabilities jeopardize patient safety directly. Regulators heavily penalize improper airflow integration during inspections. Your equipment must seamlessly accommodate Laminar Flow systems. Many modern facilities require Restricted Access Barrier Systems (RABS). These physical enclosures isolate the sterile product from human operators. They prevent airborne particles from entering open vials. Failure to maintain sterility destroys entire production batches.
Labor costs and format changeovers also hide significant expenses. Switching between 10ml, 15ml, and 30ml bottle formats often causes prolonged downtime. Complex legacy machinery requires hand tools and specialized mechanics. This reliance reduces your overall equipment effectiveness (OEE). A modern setup uses intuitive, toolless changeover parts. Operators snap new guides into place quickly and safely. You regain hours of valuable production time each week. Maximizing uptime directly increases your manufacturing revenue.
Manual bottle loading introduces contamination and slows down production speeds. A reliable bottle unscrambler solves this problem immediately. It prevents mechanical jams and ensures a continuous feed of containers. The unscrambler orientates bottles correctly before they enter the sterile zone. Advanced models include integrated air-rinse stations. These stations invert the bottles and blast sterile air inside. This critical step removes dust and particulates before filling begins. You secure a cleaner, safer starting point for your APIs. Gentle handling also prevents micro-scratches on delicate plastic bottles.
The core nasal spray bottle filling machine dictates your production success. Modern units use multi-nozzle configurations to increase hourly throughput drastically. Diving nozzle technology is absolutely essential here. Nozzles lower directly into the bottle neck during the dosing phase. They rise gradually as the liquid level increases inside the container. This synchronized movement prevents foaming and splashing entirely. Splashing wastes costly product and coats the bottle threads. Wet threads compromise the final seal and invite microbial growth. Clean threads ensure a perfect closure every time.
Nasal sprays utilize several different closure types today. You might use screw-on pumps, snap-on pumps, or crimped aerosol valves. Each closure requires a highly specific sealing approach. A specialized capping machine handles these variations effortlessly. It utilizes servo-driven torque control for screw-on caps. Servos apply exact rotational force to prevent plastic thread damage. Snap-on caps require even, vertical downward pressure. Crimped valves need uniform radial compression to seal properly. High-quality cappers create leak-proof seals without generating particulate matter. Friction from poor capping mechanisms often creates harmful plastic dust. Cleanroom environments cannot tolerate this mechanical contamination.
Peristaltic pumps offer the ultimate high-sterility route for modern manufacturers. The fluid only contacts the interior of the medical-grade tubing. It never touches the mechanical pump components directly. This physical separation guarantees zero cross-contamination between product batches. You achieve rapid changeover simply by replacing the disposable tube entirely. They represent the ideal choice for sensitive, high-value biopharmaceuticals. However, they do possess distinct limitations in certain applications. Highly viscous liquids reduce their dosing accuracy over time. You may need frequent calibration during long continuous production runs. Tubing wear can also impact long-term dose consistency.
Ceramic piston pumps provide a high-durability alternative for specific formulations. They deliver unmatched volumetric precision for high-viscosity liquids and gels. Their solid construction handles continuous, high-speed commercial runs easily. They do not degrade or lose accuracy over millions of cycles. Dense ceramic components resist wear and chemical degradation perfectly. Despite these operational strengths, they pose unique changeover challenges. Piston pumps require rigorous Clean-in-Place and Sterilize-in-Place (CIP/SIP) processes. Operators spend more time breaking down and cleaning these robust systems.
Pump Technology Comparison Chart
Feature | Peristaltic Pumps | Ceramic Piston Pumps |
|---|---|---|
Fluid Contact Surface | Disposable tubing only | Internal pump components |
Primary Application | Sensitive biologics, low viscosity | High viscosity, continuous runs |
Changeover Speed | Extremely fast (tube swap) | Slower (requires CIP/SIP cycles) |
Mechanical Durability | Moderate (tubing requires replacement) | Extremely high (years of service) |
Contamination Risk | Virtually zero | Low (if validated cleaning is used) |
Regulatory bodies scrutinize pharmaceutical packaging lines heavily during audits. You must embed compliance directly into your initial equipment design. Post-installation modifications often compromise validated sterile boundaries.
Regulators mandate strict material standards for all product-contacting parts. You must specify FDA-approved, 316L stainless steel for hoppers and nozzles. This specific alloy resists corrosion from aggressive chemical cleaning agents. It maintains a flawless surface finish to prevent bacterial adhesion. Non-metal components require food-grade silicone or specialized Teflon materials. These inert materials prevent chemical leaching into your nasal spray formulations. You must obtain material certificates for every contact part.
Modern pharmaceutical manufacturing relies on absolute data integrity. FDA CFR 21 Part 11 compliance is mandatory for electronic production records. Your equipment needs automated, PLC-driven audit trails built in. Siemens or Allen-Bradley integrations provide robust, industry-standard security architectures. The system must enforce strict, individualized user access levels. Operators cannot alter critical dosing parameters without proper managerial authorization. Secure batch reporting proves your operational compliance during unannounced regulatory audits.
You cannot run commercial batches without thorough, approved validation documentation. Vendor-supplied Factory Acceptance Testing (FAT) represents your first crucial checkpoint. It proves the machine works correctly before it leaves the manufacturer. Site Acceptance Testing (SAT) confirms it survives transit and integrates locally. Comprehensive IQ/OQ/PQ (Installation, Operational, and Performance Qualification) protocols are absolutely non-negotiable. They provide the documented, step-by-step evidence required for smooth regulatory approvals. You must execute these protocols flawlessly.
Nasal spray machines operate inside strict, highly regulated environmental controls. You must integrate them within Class 100 (ISO 5) cleanrooms. The machine architecture must support ceiling-mounted HEPA filtration compatibility. Engineers design smooth, sloped machine surfaces to optimize vertical airflow. Horizontal surfaces disrupt airflow and allow particulates to settle dangerously. Many modern facilities utilize RABS to enclose the filling zone completely. This physical barrier protects the sterile product from human operators entirely.
Selecting the right machine architecture determines your operational flexibility. You must evaluate inline and rotary setups carefully before purchasing. Your daily production volume dictates the correct engineering path.
Inline filling machines process bottles in a straight, linear path.
Best for: Facilities managing highly variable batch sizes and frequent format changes. They suit tighter capital equipment budgets perfectly.
Trade-offs: They offer a lower maximum throughput compared to rotary systems. Indexing bottles linearly takes slightly more physical time per cycle.
You should choose inline models if you produce many different SKU variations. They allow quick adjustments between small customized batches.
Rotary filling machines move bottles through a continuous circular carousel.
Best for: Dedicated, high-speed, commercial-scale production lines. They require continuous motion for maximum volumetric output.
Trade-offs: They demand higher upfront capital expenditure. Format parts for changeovers are physically more complex and expensive.
High-volume single-product lines benefit immensely from continuous rotary speed. They maximize output for standard over-the-counter nasal spray products.
You must assess several implementation risks before signing a purchase order. Thorough planning prevents costly installation delays.
Evaluate these three critical implementation risks before finalizing your equipment purchase:
Format Part Lead Times: Custom star wheels and guides often take months to machine and qualify. Order them early.
Local Technical Support: Confirm the vendor has regional technicians available for emergency repairs. Remote support has limits.
Maintenance SLAs: Establish clear response times for preventative maintenance to minimize unexpected downtime events.
Addressing these risks early guarantees a smoother operational handover.
Selecting the right alignment for your packaging equipment hinges on multiple factors. API characteristics directly dictate your pump technology choices. Strict cGMP validation ensures patient safety and secures regulatory approval. Realistic throughput needs determine your fundamental machine architecture. You must balance operational speed, dosing precision, and equipment cleanability carefully. Ignoring any single factor compromises your entire pharmaceutical production line.
Partnering with a vendor capable of full-line integration mitigates major headaches. A unified setup connects every step seamlessly from start to finish. It takes your process from initial container sorting to end-of-line labeling smoothly. This holistic approach eliminates software conflicts between mismatched machine brands. Single-source providers simplify troubleshooting and streamline overall software integration. You only deal with one responsible engineering team.
We encourage technical buyers to take immediate, proactive steps today. Request a detailed User Requirement Specification (URS) review from your vendor. Schedule a pilot FAT to observe the equipment running your specific bottles. Proactive planning guarantees a resilient, compliant, and profitable pharmaceutical packaging line.
A: Industry standard tolerances typically range from ±0.5% to ±1.0%. This accuracy depends heavily on the target fill volume and the chosen pump type. Ceramic piston pumps consistently hit tighter tolerances for viscous liquids. Peristaltic pumps maintain excellent accuracy for thin fluids but require careful calibration. High-precision servo motors drive both systems to minimize deviations.
A: Yes, a single machine can handle both. However, it requires interchangeable servo-driven capping heads. Screw-on caps need exact torque control. Snap-on caps require vertical press mechanisms. Changing these format parts introduces some operational downtime. Facilities must weigh the cost of changeover downtime against purchasing dedicated machines.
A: Advanced filling lines utilize integrated machine vision systems or photoelectric sensors. These sensors inspect the bottle immediately before crimping or capping occurs. If a dip tube is missing, bent, or improperly seated, the system detects it. The machine automatically rejects the malformed unit without stopping the entire production line.
A: Realistic timelines generally span 4 to 8 months. This duration factors in rigorous design approvals, custom manufacturing, and stringent software integration. Factory Acceptance Testing (FAT) and validation documentation also require significant time. Complex rotary systems with extensive RABS integration usually push closer to the 8-month mark.
