Upgrading or scaling production requires packaging machinery precisely matching the physical behavior of your product. A mismatch leads to variable fill weights, compromised seals, and costly product rework. Operations teams often face frustrating bottlenecks when their equipment cannot handle new formulations. Machine compatibility is dictated by two independent variables. The first is the rheology, meaning the flow and viscosity, of the product inside. The second is the material composition of the tube outside. You cannot ignore either factor if you want consistent output. This article serves as a technical evaluation guide. We will help operations and procurement teams specify the correct equipment based on exact product characteristics and production risks. You will learn how to match filling mechanisms to viscosities and sealing technologies to tube materials. By understanding these core principles, you can eliminate trial and error on the factory floor.
Viscosity dictates the filling mechanism: Piston fillers for thick pastes, gravity/pump systems for free-flowing liquids.
Tube material dictates the sealing technology: Hot-air or ultrasonic for plastics/laminates; mechanical crimping for metal tubes.
Industry compliance (GMP, FDA) requires specific contact materials (e.g., 316L stainless steel) and Clean-In-Place (CIP) capabilities.
Verifying machine capability always requires factory acceptance testing (FAT) using actual product batches and specific tube blanks to avoid hidden deployment failures.
The primary driver of filling accuracy is how the product behaves under pressure. Ambient temperature changes during the filling cycle also drastically alter flow rates. You must match the pump style exactly to the liquid's specific physical properties to maintain dosing precision. Viscosity is typically measured in centipoise (cP). A product like water sits at 1 cP, while thick peanut butter can exceed 250,000 cP. You must communicate this exact cP value to your equipment manufacturer.
Products like toothpaste, heavy ointments, and industrial adhesives resist movement. They do not flow easily through standard gravity-fed nozzles. You must use positive displacement or rotary valve piston fillers for these dense substances. The piston draws a precise volume of product into the chamber on the backstroke. It then forces the paste into the tube on the forward stroke. A standard toothpaste tube filler requires robust suction to pull the thick paste into the dosing cylinder. We strongly recommend heated hoppers for these high-viscosity applications. Heat maintains consistent product flow, reduces internal friction, and prevents damaging cavitation inside the pump mechanism. Jacketed hoppers circulate warm water to keep pastes pliable.
Cosmetic serums, lotions, and liquid gels flow freely under their own weight. They present an entirely different set of fluid dynamics challenges. Splash-back and dripping can easily ruin the production run by contaminating the tube walls. We rely on dive-in nozzles to prevent this splashing. These specialized nozzles travel down to the very bottom of the tube before dispensing begins. They slowly rise in tandem as the liquid fills the cavity. You also absolutely need anti-drip shut-off valves. They cut the fluid flow instantly to ensure perfectly clean sealing areas.
Exfoliating scrubs, fruit jams, and food pastes often contain solid particles or seeds. These physical inclusions complicate the continuous filling process. Standard valves can easily crush delicate particulates or clog the piping during operation. You need specialized rotary valves engineered featuring wide internal clearances. They allow solid pieces to pass through the fluid path without shear damage. This careful handling ensures your exfoliating scrub retains its intended tactile texture when it reaches the consumer.
The physical construction of the tube mandates the sealing module you must deploy. Attempting to run incompatible materials always results in weak, unviable seals. It can also cause severe cosmetic scorching to the external packaging.
Manufacturers commonly use hot-air sealing for these specific materials. This thermal method melts the polymer layers from the inside out. Hot air sealing offers several distinct advantages:
Uniform heat distribution across the inner seal area.
Fast cycle times suitable for high-speed rotary machines.
Zero contact regarding external tube graphics, preserving brand aesthetics.
A high-quality plastic tube filling and sealing machine relies heavily on precise temperature control algorithms. You must heat the inner wall exactly enough to bond the polymers. However, you cannot scorch the external artwork or deform the tube shape. Heavy-duty cooling jaws then clamp the molten plastic to ensure a permanent hermetic internal bond.
Metal packaging requires an entirely different structural approach. You seal aluminum through precise mechanical fold crimping. Operators utilize several common styles, including the saddle fold, double fold, and triple fold. You mechanically bend the metal layers to trap the product safely inside. Sometimes, standard mechanical crimping is simply not enough to prevent micro-leaks. You might evaluate an ultrasonic metal tube sealer for highly specialized applications. This advanced technology works exceptionally well for volatile industrial or sensitive pharmaceutical products. It creates a solid-state molecular bond across the metal layers rather than relying on just a physical fold.
A robust machine built for industrial adhesives may instantly fail stringent pharmaceutical audits. Every manufacturing sector demands specific compliance credentials and documentation.
Beauty brands care deeply about aesthetic finishing and shelf appeal. Your equipment must consistently produce clean, radiused corners and precise lot coding without smudging. Rapid changeover capabilities are also an essential operational requirement. Cosmetic facilities often run multiple SKUs in a single shift. They need tool-less adjustment features to minimize downtime between lotion and serum runs.
Medical applications require strict E-E-A-T credentials and rigorous validation processes. You must specify CFR Part 11 compliance for electronic data tracking. GMP-ready hygienic designs are non-negotiable for audit survival. All product contact parts must utilize premium 316L stainless steel rather than standard 304 alloys. You also need strict sterile washdown capabilities. This includes full CIP (Clean-In-Place) or SIP (Sterilize-In-Place) integration to eliminate cross-contamination risks entirely.
Handling harsh solvents and epoxies poses massive factory safety risks. You must mandate explosion-proof (ATEX) pneumatic systems for any flammable goods. Standard rubber O-rings and seals will fail quickly under prolonged chemical exposure. You must specify chemical-resistant gaskets made of Viton or PTFE to prevent dangerous leaks on the factory floor.
No complex machine operates flawlessly out of the box without proper site calibration. You will face real-world deployment realities once the equipment hits the factory floor. Understanding common failure modes helps you prevent them during the purchasing phase.
Improper fill speeds cause significant unseen issues. A lack of bottom-up filling traps large air pockets inside the viscous product. When air gets trapped, the tube expands like a balloon during air transport at high altitudes. This pressure change blows out the bottom seal, ruining entire cases of product before they reach the retail shelf. You must meticulously tune the dive-in nozzle speed to match the pump's exact discharge rate.
Product dripping onto the sealing area severely compromises hot-air welds. The plastic walls cannot fuse properly if essential oils or thick pastes coat the inner surface. Advanced anti-drip mechanisms mitigate this risk entirely. Operators must regularly inspect the shut-off valves for wear.
You must evaluate production schedules before authorizing any capital expense. Do not purchase inflexible tube filling equipment if you constantly shift between vastly different tube diameters. These shifts require buying expensive change parts and custom transport pucks. Inflexible engineering designs lead to hundreds of hours of lost production time annually.
To mitigate these common deployment risks, follow this implementation sequence:
Calibrate pump stroke volume using water before introducing dense pastes.
Test hot-air nozzle temperatures at different ambient factory conditions.
Verify dive-nozzle timing to ensure it lifts just above the rising fluid level.
Inspect initial batch seals using destructive burst testing protocols.
Buyers need a highly concrete methodology when approaching potential vendors. You must objectively align your technical requirements with physical operational constraints.

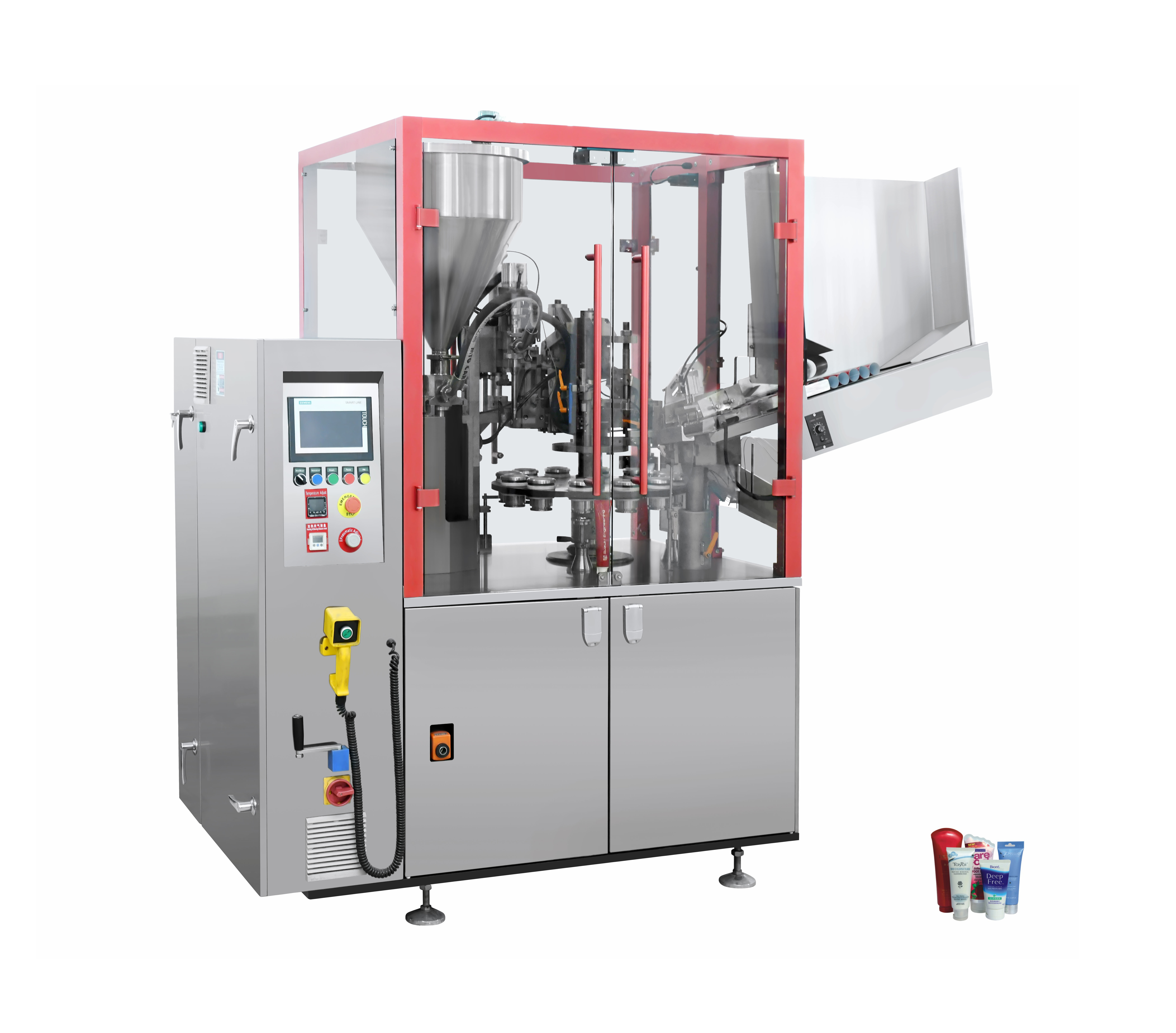

Map your daily production targets directly to the correct automation level. Manual systems work adequately for R&D labs. Semi-automatic machines handle moderate batches for regional brands. Fully automatic rotary systems easily clear 120 tubes per minute for national distribution. We strongly recommend evaluating your three-year volume growth projections. A fully automated tube filling and sealing machine pays for itself rapidly through massive labor savings at high volumes.
Machine Automation Levels and Target Capacities
Automation Level | Typical Speed (Tubes/Min) | Best Application | Operator Intervention |
|---|---|---|---|
Manual Tabletop | 10 - 20 | R&D, Startups | High (Manual tube loading and positioning) |
Semi-Automatic | 30 - 50 | Small to Medium Runs | Medium (Manual tube loading, auto fill/seal) |
Fully Automatic Rotary | 60 - 150+ | Mass Production | Low (Bulk hopper loading, fully automated cycle) |
Consider your strict floor space constraints before finalizing the purchase order. Rotary indexing machines save considerable space compared to long inline linear designs. You must also ask whether the control system integrates easily with downstream cartoning and case-packing equipment.
We strongly advise corporate buyers to demand a comprehensive pilot run. You must send your actual bulk product and specific tube blanks directly to the manufacturer. Theoretical specifications printed on a brochure never guarantee real-world factory performance. Factory Acceptance Testing (FAT) acts as your absolute final insurance policy before accepting delivery.
Matching your product rheology to the correct filling pump remains non-negotiable. You must also align your tube material directly with the appropriate sealing jaws. Ignoring these fundamental engineering rules guarantees production bottlenecks and compromised packaging. We encourage plant operations managers to compile comprehensive product specification sheets immediately. Gather your precise viscosity data, detailed tube schematics, and realistic throughput goals. Share these concrete details early when initiating technical consultations or requesting final quotes. Proper data preparation prevents costly equipment mismatches.
A: Yes, but it requires combination machines featuring interchangeable sealing heads. These units integrate both hot air stations and mechanical crimping stations on the exact same chassis. Keep in mind this flexibility increases upfront capital costs. It also adds significant changeover time when operators swap between the two formatting styles.
A: You mitigate stringing through precise nozzle design and software control. We utilize pneumatic blow-off nozzles to cleanly sever the product stream. Suck-back valves create a slight vacuum to pull excess paste upward. Optimizing the fill speed curve via the PLC also prevents trailing threads entirely.
A: Modern equipment generally requires 30 to 60 minutes for a complete size changeover. This duration depends heavily on whether you need to swap transport pucks, filling nozzles, and sealing jaws. Tool-less adjustment features significantly reduce this downtime for operators.
