Views: 0 Author: Site Editor Publish Time: 2026-09-10 Origin: Site
Procuring the right equipment for packaging lines requires careful planning. You cannot rely on guesswork when processing different packaging dimensions. Many production managers invest in machinery hastily. They do so without verifying dimensional limits beforehand. Ignoring changeover efficiency causes severe production bottlenecks. It can also lead to costly aftermarket modifications. Sometimes, you even end up holding entirely unusable equipment. We will detail the exact diameter limits. You will discover the length and volume capabilities of standard equipment today. You will learn how tooling impacts flexibility across product lines. We also provide a clear, practical framework. Use it for evaluating machine specifications based on your operational needs. You can secure better uptime by mastering these technical parameters early.
Standard machines typically process tube diameters from 10mm to 60mm and volumes ranging from 3ml to 250ml.
Switching between tube sizes requires physical change parts (pucks, nozzles) and recalibration, which impacts daily operational uptime.
Sealing technology (e.g., hot air vs. ultrasonic) must scale proportionally with tube diameter to maintain seal integrity.
Fully automatic systems maximize throughput for uniform sizes, while semi-automatic systems offer faster changeovers for high-mix, low-volume production.

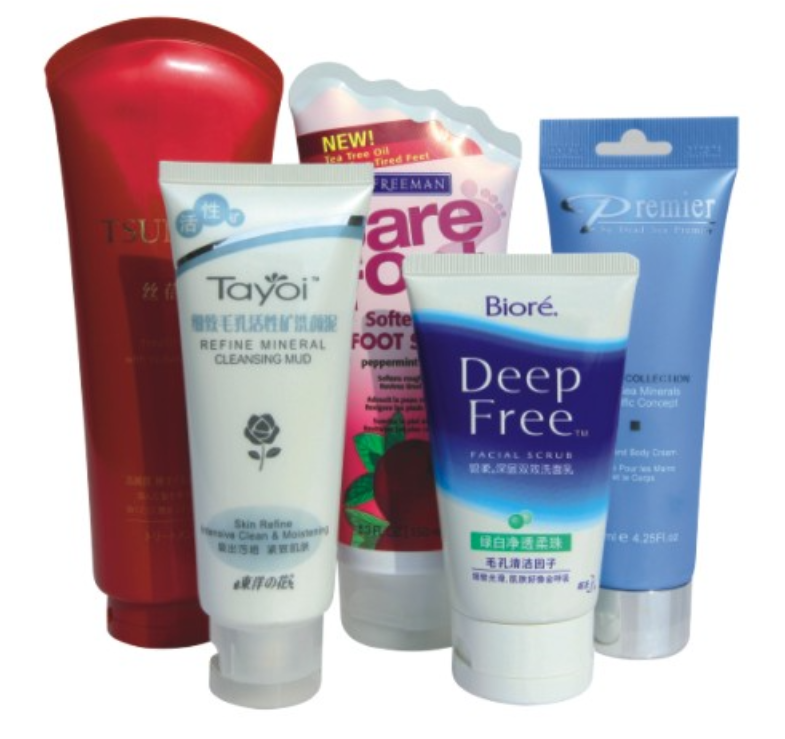

Industry standards cover a broad spectrum of sizes. Defining these typical ranges helps you match a plastic tube filling machine to your production needs. Manufacturers design equipment to handle specific minimums and maximums efficiently.
Micro-dosing systems handle tiny volumes spanning 3ml to 15ml. This range perfectly suits hotel amenities. It also matches pharmaceutical ointments and cosmetic samples. At the opposite end, large capacities reach 200ml to 250ml. These larger sizes fit hair care products. They also accommodate industrial greases and heavy body lotions. Filling these extremes requires different pump dynamics. Small doses need high-precision piston pumps. Large doses require high-flow systems to maintain acceptable cycle speeds.
The operational diameter limits typically range from 10mm up to 60mm. Diameter remains the strictest mechanical constraint. The physical size of the indexing rotary table dictates this limit. Tooling stations sit at fixed distances from one another. Tubes must fit inside the holding pucks securely. They cannot overlap or interfere during the indexing rotation. Exceeding the maximum diameter requires a completely different machine frame.
Minimum and maximum height restrictions generally fall between 50mm and 250mm. Tube length directly dictates the required stroke length of the filling nozzle. The nozzle must travel all the way to the bottom. It performs a bottom-up filling sequence. This upward movement prevents trapped air pockets. It also ensures a clean fill without product splashing.
You must heed a critical constraint warning. A single machine rarely operates efficiently at both absolute extremes. Processing a tiny 3ml tube and a massive 250ml tube on the exact same chassis proves difficult. It requires substantial tooling modifications. The mechanical strokes often cannot accommodate such wide variances efficiently.
Standard Operational Ranges for Tube Packaging
Parameter | Micro/Small Range | Standard/Medium Range | Large Range |
|---|---|---|---|
Volume | 3ml – 15ml | 20ml – 150ml | 160ml – 250ml |
Diameter | 10mm – 15mm | 16mm – 40mm | 41mm – 60mm |
Length | 50mm – 80mm | 81mm – 170mm | 171mm – 250mm |
Selecting the right automation level directly influences how easily you can switch between packaging sizes. Different production models require different mechanical approaches. You must align your equipment type with your daily operational rhythm.
This category works best for high-mix, low-volume facilities. Such plants run multiple tube sizes daily. Operators physically place empty packages into the machine. Plastic tube filling equipment in this tier offers distinct benefits for flexible lines.
Simpler tooling: The mechanical footprint remains less complex. There are fewer moving parts to adjust.
Forgiving tolerances: Manual loading allows operators to adjust slightly warped tubes. They can handle minor manufacturing defects seamlessly.
Faster size changeovers: Mechanics can swap out parts rapidly. You avoid recalibrating complex auto-loaders.

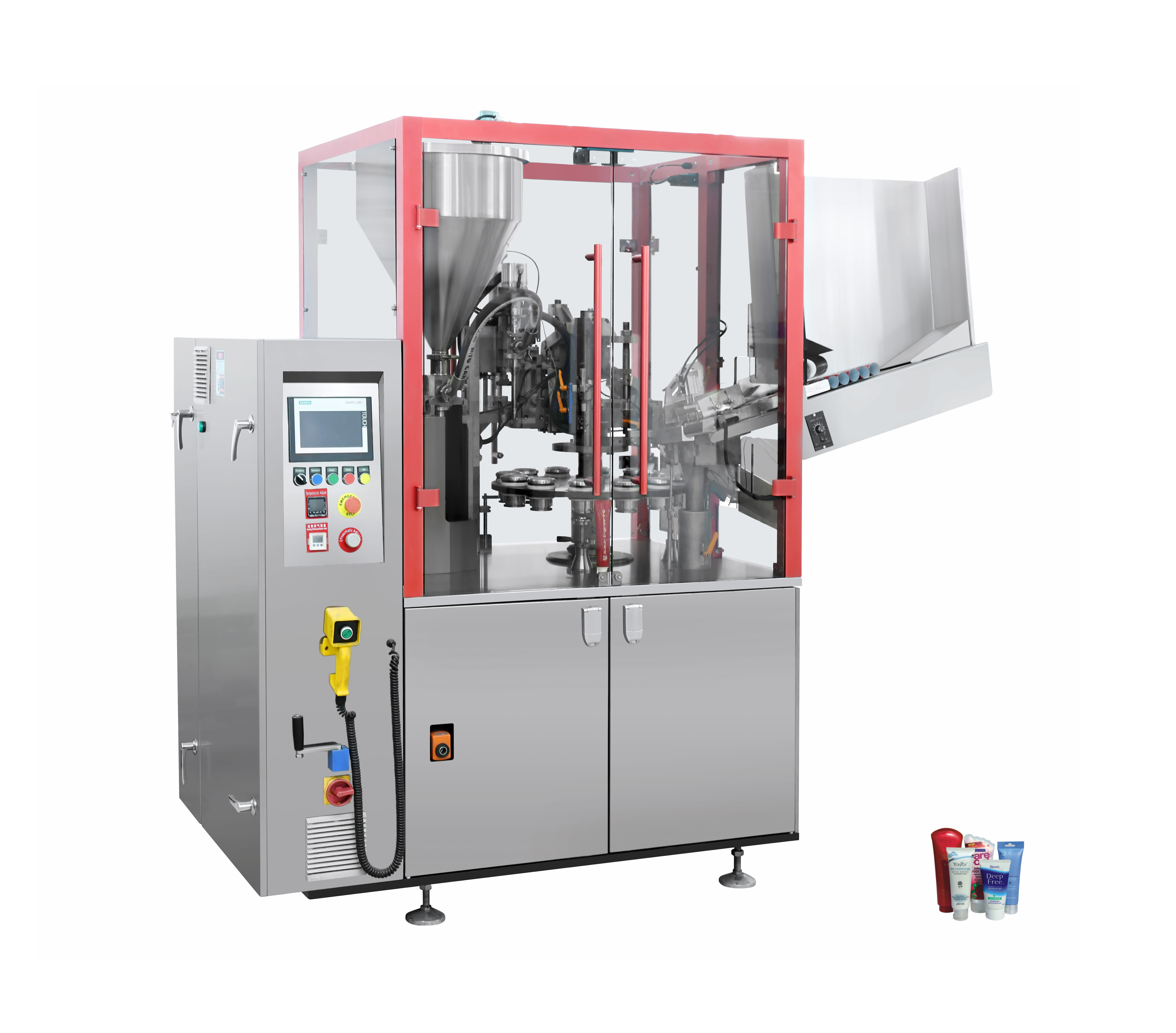

Fully automatic models fit dedicated, high-speed production environments. They excel when running standardized sizes for long periods. The system handles loading, orienting, filling, and sealing without manual intervention.
Dedicated output: They maximize throughput for uniform sizes. Speeds easily exceed 60 units per minute.
Exact consistency required: Automatic magazine loaders demand precise dimensional consistency. Warped or bent packages will jam the loading chute.
Complex recalibration: Changeovers demand intensive mechanical work. Technicians must adjust the loader incline. They must calibrate the orientation sensors perfectly.
Packaging diameter deeply impacts the physics of sealing. You cannot apply the same thermal parameters to every product. A 50mm diameter package requires significantly different heat exposure than a 15mm one. The crimping jaws must apply distinct pressure levels. Finding the exact balance achieves a compliant, leak-proof seal.
Hot air technology relies on interchangeable heating nozzles. These nozzles dive into the open end of the package. They blow heated air outward to melt the inner wall. The nozzle must perfectly match the inside diameter. If the nozzle is too small, the heat escapes unevenly. This causes weak bonds. If it is too large, it scorches the plastic. Technicians must swap these heating elements during every size changeover.
We often recommend an ultrasonic tube sealing system as a powerful alternative. It handles varying thicknesses and sizes exceptionally well. Ultrasonic friction bypasses internal heat requirements. High-frequency vibrations generate molecular heat directly within the plastic layers. It makes the system highly effective for complex composite materials. You can often process different diameters with fewer thermal recalibrations. The ultrasonic horn adapts more flexibly to different widths.
Wider tubes also impact the final finishing stages. They require wider trimming blades to cleanly cut the top edge. Furthermore, a 50mm seal offers much more real estate for batch coding. You can fit longer expiration dates and broader lot numbers compared to a tiny 15mm seal.
Many procurement teams underestimate changeover complexity. They believe in the myth of "push-button" size changes. This implementation risk plagues many facilities. Physical physics dictate strict mechanical interventions. You must physically replace components when altering dimensions.
You will need specific change parts when transitioning between sizes. Understanding these components helps you plan realistic maintenance schedules.
Pucks (Tube Holders): These cups secure the package on the rotary table. They must match the exact external diameter. A loose puck causes the package to spin out of alignment.
Filling Nozzles: The nozzle must correspond to the internal diameter. It must slide in smoothly without touching the walls. Product viscosity also dictates nozzle design. Thick pastes need wider nozzles to prevent pressure buildup.
Sensors: Eye-mark sensors align the printed artwork before sealing. They require physical repositioning. You must slide them up or down on the mounting bracket for different tube lengths.
You must balance time versus throughput. Switching out these change parts requires significant downtime. A well-trained operator needs 30 to 60 minutes for a complete size changeover. Facilities running high-variance production lines must calculate this downtime. It heavily impacts your true daily throughput.
Different industries face unique dimensional challenges. Analyzing sector-specific requirements helps you benchmark your own production line against proven standards.
The cosmetics and skincare sector demands high variance. A single facility might produce small eye cream samples (15mm diameter). The same plant might also manufacture large body scrubs (50mm diameter). Doing this on the same platform challenges operators. It requires a robust machine capable of accepting wide tooling shifts. Cosmetic companies often invest in multiple sets of pucks.
Oral care production operates entirely differently. It is highly standardized. Facilities use a dedicated toothpaste tube packaging machine. Sizes usually range from 22mm to 35mm in diameter. Product volumes typically span 50g to 150g. Plant managers prioritize maximum RPM over size flexibility. They keep machines running at top speeds for weeks without changing dimensions.
Pharmaceuticals present a completely different scenario. Production focuses heavily on micro-tubes. Sizes range narrowly from 10mm to 15mm. Absolute dose precision matters above all else. A deviation of just 0.5ml ruins a medicinal batch. Sterile handling takes precedence over massive volume. The equipment utilizes specialized micro-pumps and highly sensitive orientation sensors.
You need a structured approach before contacting suppliers. Buying a plastic tube filling and sealing machine represents a major operational commitment. Follow this clear evaluation framework to ensure success.
First, audit your existing product line. Document your absolute minimum and maximum diameters. Record the various lengths. Map out the different liquid viscosities you process. Create a comprehensive spreadsheet. Handing this document to a manufacturer instantly clarifies your needs.
Second, apply the 80/20 rule of tooling. We recommend buying a machine optimized for the sizes making up 80% of your production volume. Do not over-engineer the core machine for rare edge cases. If you run a 250ml size only twice a year, consider outsourcing it. Focus your capital on maximizing the efficiency of your daily runners.
Third, prioritize future-proofing your investment. Ask manufacturers for the cost of additional "change part kits" upfront. Secure pricing for extra pucks and nozzles before finalizing the initial machine purchase. This transparency prevents unexpected expenses later.
Finally, take immediate action regarding testing. We strongly advise sending physical empty tubes to the manufacturer. Send large bulk product samples as well. Demand a thorough Factory Acceptance Testing (FAT) protocol. Watching your actual materials run on the machine eliminates theoretical guesswork. It proves the equipment handles your specific diameters flawlessly.
Modern packaging machines offer impressive versatility for production environments. However, physical physics strictly dictate your operational limits. Varying sizes require specific tooling inserts. They demand distinct thermal sealing parameters. They also require dedicated changeover downtime. Ignoring these realities causes frustrating bottlenecks.
Take the following actionable steps to secure the best equipment:
Document your complete range of diameters and fill volumes immediately.
Calculate acceptable changeover downtime based on your daily shift schedule.
Request a tailored specification sheet from the manufacturer.
Ask for a throughput calculation based on your specific tube matrix.
Demand physical testing using your exact packaging materials.
A: These materials require entirely different closing mechanisms. Plastic requires heat melting or ultrasonic friction. Aluminum requires mechanical folding and crimping. Running both usually requires specialized hybrid machines. Alternatively, you must purchase separate, dedicated equipment for each material type to ensure reliable seals.
A: Processing dimensions under 10mm requires highly specialized pharmaceutical equipment. Standard rotary tables struggle to index such tiny items accurately. You will need custom-milled pucks. You must also implement micro-dosing pump systems to handle the minute fluid volumes without spilling.
A: You can often run them on standard rotary frames. However, they require highly customized tooling. You must purchase custom-milled pucks to match the oval profile. You also need specialized orientation sensors to ensure the oval aligns perfectly before the sealing jaws close.
