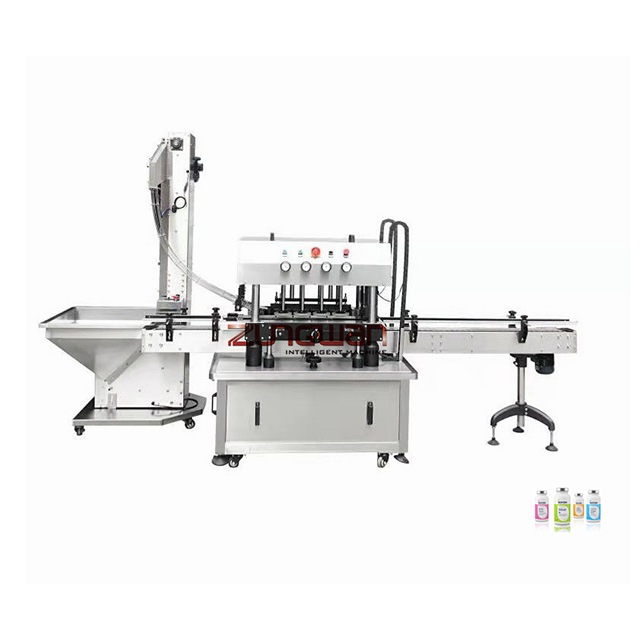

In our daily life, Capping Machine plays a vital role for us, so what are the main work processes and precautions of the Capping Machine? Let's take a look together next.
This is the content list:
The main workflow of Capping Machine
How to carry out daily maintenance and maintenance of Capping Machine
How to deal with common problems of Capping Machine
We know that after the plastic bottles are sorted by the Capping Machine, they enter the conveyor chain in a single row. In the filling station, the plunger pump injects the liquid in the container into the plastic bottle. After filling, the plastic bottle enters the index plate and stops accurately at the capping station. Manually place the cap of the Capping Machine at the entrance of the friction beltline, take out the capping claw, screw the cap claw, and squeeze the tube claw to complete the capping action. Then the plastic bottle exits the index plate and enters the conveyor chain, and enters the labeling station to complete the round bottle labeling.
1. Always keep the Capping Machine clean, especially for the electrical appliances on the switchboard, to prevent moisture and dust, and it is forbidden to change the program of the inverter and the program controller at will.
2. The power supply voltage of the Capping Machine should be stable, not exceeding ±15%, the material temperature should be kept at 10℃-40℃, the ambient temperature should be kept at 5℃~40℃, and the temperature should be kept at 5~95%PH.
3. The flowmeter used by the Capping Machine for spray filling is a precision instrument. Therefore, the oil must be precision filtered before it can be filled.
4. Turn off the power supply and oil inlet valve of the Capping Machine after finishing the work.
5. Pay attention to the cleanliness of the infrared sensor from the Capping Machine. Frequently wipe it clean with clean cotton. It is strictly forbidden for any object to approach the sensor during the working process, and strong light should not be directly or reflected on the sensor, otherwise, it will prosper and malfunction.
6. Add cylinder lubricating oil to the pneumatic triplet regularly.
7. When the machine is not used for a long time, all parts should be wiped clean and covered with plastic or tarpaulin to prevent dust.
First, what should I do if the cylinder piston of the Capping Machine does not work? Confirm whether the safety emergency stop switch is safe. Confirm that the air supply switch of the Capping Machine is turned on. Check if the Capping Machine one-way signal valve is damaged.
Second, what should I do if the Capping Machine cylinder piston does not return after being pushed to the top? Confirm whether the moving target is in contact with the one-way valve.
Third, how to adjust the filling volume of the Capping Machine is inaccurate or not discharged?
Check whether the upper and lower throttle valves of the Capping Machine are closed, and increase the pumping speed of the throttle valve of the cylinder. Make sure that the Capping Machine quick-install tee is locked with a clamp. Confirm whether there are enough materials in the Capping Machine storage box. Make sure that the joints of the pipes of the Capping Machine are sealed.
Fourth, what should I do if the material of the Capping Machine flows out from the rear end of the cylinder? Check whether the sealing ring on the Capping Machine piston is worn. If it is worn, replace it and make sure that the piston and the piston rod are tight.
In addition to timely handling of problems, it is also necessary to do a good job of preventive work in advance. Doing a good job in daily maintenance can also reduce the failure rate of the Capping Machine. The daily maintenance and maintenance of the Capping Machine cannot be underestimated. This is a very important step. Daily maintenance on time can effectively extend the service life of the Capping Machine, improve the production efficiency of the enterprise, and keep Capping Machine in normal operation throughout the day, reducing manpower. The loss of material resources.
Wenzhou Zungwan Intelligent Machinery Co., Ltd.'s first-class product quality and efficient and quick after-sales service have created excellent products of "Zhonghuan". Products are in great demand in the domestic and foreign markets. Keep improving, develop to satisfy customers, and meet market demands are our eternal topic and our sincere commitment to customers. Therefore, Capping Machine is very popular among consumers. If you are interested in Capping Machine, you can contact us. Our website is www.cnzpack.com.
Now Bag Packing Machine is the most popular packaging equipment in the market, and it is used in all walks of life. Now the ubiquitous refractory materials, coffee, salt, MSG, potato chips, etc. are packed in a variety of packaging, then What are the general characteristics of a Bag Packing Machine? Let's take a look together next.
This is the content list:
l Standardization and modularization of Bag Packing Machine structure design
l Bag Packing Machine packaging speed increases
l High-precision structure movement of Bag Packing Machine
l Bag Packing Machine control is intelligent and flexible
Standardization and modularization of Bag Packing Machine structure design
When using a Bag Packing Machine to complete the packaging of different materials, the modular design of the original model can be used to quickly change the specifications or convert to other packaging models in a short time. The Bag Packing Machine is not the metering system that provides enough space.
Bag Packing Machine packaging speed increases
At present, the single-line packaging speed of the small Bag Packing Machine is generally 30-120 bags/min. Compared with the manual, the packaging speed is greatly accelerated. The Bag Packing Machine is more helpful for enterprises to realize automatic packaging and save time and cost.
High-precision structure movement of Bag Packing Machine
Because Bag Packing Machine adopts various new technologies, such as high-precision mechanical control of various actions through servo motors, encoders and digital control (NC), power load control PLC, etc., the filling and metering accuracy of the Bag Packing Machine is reduced. The bag-making accuracy has been improved.
Bag Packing Machine control is intelligent and flexible
Most Bag Packing Machines track and adjust various mechanical parameters through intelligent control instruments and menu-type software on the touch screen. The Bag Packing Machine electronic display shows the length of the bag, the packing speed, the net content of the filling and the packing output, etc., which can be understood at a glance. The standard color code tracking photoelectric system can ensure the correct printing patterns of the packaged products. In addition, Bag Packing Machine can perform online status monitoring and fault diagnosis analysis of the working process. Once a problem occurs, Bag Packing Machine will automatically stop and display the cause and solution of the fault.
Wenzhou Zungwan Intelligent Machinery Co., Ltd. is a professional equipment manufacturer that continuously researches and develops various packaging machinery for liquid, powder, cream/ointment, fluid, and semi-fluid materials. The quality of our machines and services as well as our integrity are widely praised at home and abroad. We will carry forward the spirit of "comprehensive innovation and perseverance", self-discipline and strive for the first place, and provide new and old customers with better and more complete services with enthusiasm and a new attitude. The production of the Bag Packing Machine is strictly controlled. The company uses the characteristics of the Bag Packing Machine to improve it to meet the needs of consumers. If you are interested in Bag Packing Machine, you can contact us. Our website is www.cnzpack.com. We look forward to your coming and very much hope to cooperate with you.
In our production and life, the Cartoning Machine is of great significance to us, but sometimes, the Cartoning Machine will fail, so what is the reason for the failure of the Cartoning Machine? Next, let us analyze it together.
This is the content list:
Stop or stop between conveyor belts
The carton cannot be sucked down
The carton is not formed or ejected at the mouth of the box feeding template after being sucked
Can't suck the instructions
The paper rebounds during the suction process of the manual
The manual does not fold well
Uneven folding of the manual
There are curls and creases after the manual is folded
Manual stuck in the fence
1. Cartoning Machine shuts down at intervals to check if there is a shortage of materials and automatically starts up when supplemented.
2. Shut down the Cartoning Machine to check whether the power supply including the power supply part, the motor, or the governor is normal.
1. Whether the cartons of Cartons Machine are arranged neatly.
2. Whether the cartons of the Cartoning Machine are pasted together.
3. Whether the air pressure of the Cartoning Machine suction head is normal.
1. Check if the cartons of Cartons Machine are too hard.
2. Check whether the position of the guide rod of the cartons placed by the Cartoning Machine and the box delivery template are not correct.
3. Check whether the small hook spring at the rear of the Cartoning Machine delivery template is deformed.
4. Check if the height of the suction head of the Cartoning Machine and the box delivery track is correct.
1. Whether the Cartoning Machine manual is deformed, causing the suction head to fail to suck.
2. Whether the suction head gas of the Cartoning Machine is parallel to the manual.
3. Whether the paper width of the Cartoning Machine manual is different, the error must be within 1mm. The stacking position of the manual should be adjusted to a difference of 0.5mm from the inner edge when the suction head rises to the high position.
4. The small paper-separating hook above the suction head of the Cartoning Machine origami moves too early. Generally, the small hook should be inserted into the gap between the paper and the paper before the suction head is about to drop. The height of the small hook is adjusted to be 0.5mm away from the suction head when it is in the high position.
1. The foot-lifting action of the Cartoning Machine's manual was too early, and the manual was taken away by the foot support before being pulled down. The position of the feet of the Cartoning Machine is so that it does not touch the sucked manual when it is returned and it returns to the high position when the paper picking notch wheel has not pulled the paper.
2. Whether the matching speed of the Cartoning Machine suction head and paper picking wheel is the same. The suction head of the Cartoning Machine should be lowered first, and then the front part of the paper picking notch wheel should be pressed onto the paper.
1. Check if the Cartoning Machine paper is deformed and bent, and if there are burrs.
2. Is there any foreign matter in the fence of the Cartoning Machine blocking the paper?
3. The gap between the opening of the Cartoning Machine fence and the folding stick is too large, causing the paper to come out.
4. Is the gap between Cartons Machine's folding sticks too large to hold the paper? Adjust the adjusting screws at both ends of the folding stick to reduce the gap. If the Cartoning Machine folding stick has been used for too long and worn out, the folding stick must be replaced.
Check the Cartoning Machine to adjust the front and rear positions of the barriers in the fence to achieve the required folding size.
1. Is the gap between the Cartoning Machine baffle and the folding stick too large? Adjust the middle position of the baffle and folding stick.
2. If the middle position of the Cartoning Machine baffle and the folding stick has been adjusted, and there is still a large gap, remove the positioning pins on the Cartoning Machine baffle and re-adjust until the gap does not feed paper.
1. Whether the paper feeding gap of Cartoning Machine folding stick is too large and paper feeding is weak. The adjustment method is the same as above.
2. The installation position of the lower half of the Cartoning Machine fence is too long than the arc guide plate on it so that the paper cannot enter the folding stick below. Loosen all the fixing screws on the Cartoning Machine fence and adjust the board backward, but it should not be shorter than the upper guide plate and should be 1-3 mm longer than the guide plate. If it is shorter than the guide plate, the Cartoning Machine manual may go directly into the folding stick below without folding.
Wenzhou Zungwan Intelligent Machinery Co., Ltd. is a professional equipment manufacturer. It will conduct a large number of tests before the Cartoning Machine leaves the factory to reduce the failure of the Cartoning Machine and provide warranty services. If you are interested in the Cartoning Machine, you can contact us Contact, our website is www.cnzpack.com.
Liquid Filling Machine is a kind of process machinery, its process characteristics are more obvious, for the design requirements provided by the customer as well as the functions, work efficiency and other aspects of good, then Liquid Filling Machine what are the design principles and considerations? Let's learn about it together.
This is the content list:
l The design principle of Liquid Filling Machine
l Precautions for Liquid Filling Machine
The design principle of Liquid Filling Machine
First, design the parameters of the Liquid Filling Machine and the material to be filled, and then also to understand the container to be filled, to understand the shape of the container and the characteristics of the container cap, according to these characteristics design the corresponding bottle Liquid Filling Machine.
Secondly, we should also know the functions to be achieved by the Liquid Filling Machine, the principle and method of Liquid Filling Machine filling, the whole process of Liquid Filling Machine filling should be carefully understood, and each link should be designed reasonably and appropriately to avoid affecting the effect of filling.
Liquid Filling Machine should also be based on the specific needs of enterprises, the use of functional principles of innovative design methods to design filling equipment to meet the production needs of enterprises, which will not only improve efficiency but also reduce the rate of damage and reduce the production costs of enterprises.
Precautions for Liquid Filling Machine
First, check the Liquid Filling Machine itself to determine if the ball valve in the filling machine is damaged or loose. If the internal ball valve of the Liquid Filling Machine is the cause, the solution is to replace the internal ball valve. If the internal ball valve of the Liquid Filling Machine is damaged, there is no way to repair it, only to replace it with a new one.
Check that the Liquid Filling Machine syringe assembly is clean. If it is not clean, it will cause an unclean blockage between the inner and outer tubes, so remove the Liquid Filling Machine syringe, clean it and disinfect and maintain it.
Check that the Liquid Filling Machine filler nozzle is complete. If the Liquid Filling Machine filling nozzle is damaged, the equipment will leak during operation. Replace broken filling nozzles and inspect other filling nozzles for use, deterioration, or corrosion, and replace them as soon as possible.
Check whether the O-ring is corroded or worn. If the O-ring is corroded or worn, it will also cause the Liquid Filling Machine to drip. Therefore, in this case, it is recommended to replace the O-ring.
Check the Liquid Filling Machine barrel position. Determine if the cylinder is in the cylinder center support position, and also check if the Liquid Filling Machine cylinder piston and piston rod are secure, and if they are loose, please lock them. If the cylinder failure position is changed, you need to reinstall the cylinder and confirm the correct position.
Wenzhou Zungwan Intelligent Machinery Co., Ltd. is a professional equipment manufacturer, which has made great achievements in Liquid Filling Machine and is loved by the consumers. If you are interested in Liquid Filling Machine, you can contact us, our website is www.cnzpack.com.
Most Bag Packing Machines track and adjust various mechanical parameters through intelligent control instruments and menu-type software on the touch screen. The electronic display shows the length of the cut bag, the packaging speed, the net content of the filling, and the packaging output, etc., which can be understood at a glance. The standard color code tracking photoelectric system of the Bag Packing Machine can ensure the correct printing patterns of the packaged products. In addition, Bag Packing Machine can perform online status monitoring and fault diagnosis analysis of the working process. Once a problem occurs, Bag Packing Machine will automatically stop and display the cause and solution of the fault. So how do we maintain the Bag Packing Machine equipment in actual production? Let's take a look together next.
This is the content list:
l Maintenance after production
l Machine parts lubrication
l Care instructions
Maintenance after production
Every day after production, employees must clean the Bag Packing Machine before leaving get off work. First, the material barrels are cleaned in the warehouse, and the remaining materials on the tray are cleaned and kept clean. The remaining materials in other parts are cleaned up to prepare for the next use of the Bag Packing Machine.
Machine parts lubrication
The box part of the Bag Packing Machine is equipped with an oil gauge. The oil should be filled once before the Bag Packing Machine is turned on. It can be added in the middle according to the temperature rise and operating conditions of each bearing. The Bag Packing Machine worm gearbox must store oil for a long time. The oil level is high enough that the worm gear invades the oil. If it is used frequently, the oil must be replaced every three months. There is an oil plug at the bottom for draining oil. When refueling the Bag Packing Machine, do not let the oil spill out of the cup, let alone flow around the Bag Packing Machine and on the ground. Because oil is easy to pollute materials and affect product quality.
Care instructions
Check the parts of the Bag Packing Machine regularly, once a month, check whether the movable parts of the Bag Packing Machine worm gear, worm, lubricating block, bearings, and other moving parts are flexible and worn. If any defects are found, they should be repaired in time and should not be used reluctantly. The Bag Packing Machine should be used in a dry and clean room, and should not be used in places where the atmosphere contains acids and other gases that are corrosive to the body. When the Bag Packing Machine roller moves back and forth during work, please adjust the screws on the front bearing to the proper position. If the gear shaft of the Bag Packing Machine moves, please adjust the screws behind the bearing frame to the proper position, adjust the gap so that the bearing does not make a noise, turn the belt pulley by hand, and tighten properly. Too tight or too loose can make the Bag Packing Machine happen. The possibility of damage. If it is out of service for a long time, the Bag Packing Machine must be wiped and cleaned, and the smooth surface of the machine must be coated with anti-rust oil and covered with a cloth canopy.
Wenzhou Zungwan Intelligent Machinery Co., Ltd. is a professional equipment manufacturer that produces first-class Bag Packing Machine product quality and efficient and fast after-sales service, which has created excellent products of "Zhonghuan". Products are in great demand in the domestic and foreign markets. Keep improving, develop to satisfy customers, and meet market demands are our eternal topic and our sincere commitment to customers. If you are interested in Bag Packing Machine, you can contact us, our website is www.cnzpack.com.
We know that Cartoning Machine has a great effect on our production and life and that Cartoning Machine effectively guarantees the packing quality of goods and the safe operation of the organization. So how does Cartoning Machine effectively ensure the packing quality of goods and the safe operation of the organization? Let's take a look together next.
This is the content list:
Introduction of Cartoning Machine
Cartoning Machine has coordination and safety
Cartoning Machine has stability
Cartoning Machine is suitable for intermittent Cartoning of medicine plates, hoses, ampoules, and similar items. The maximum speed of the Cartoning Machine can reach 160 boxes/min, with high packaging efficiency and high quality. Cartoning Machine can automatically complete manual folding, carton opening, plate packing, batch number printing, and sealing, etc. Cartoning Machine adopts frequency conversion speed regulation and human-machine interface PLC control. The photoelectricity monitors the actions of various parts, and when abnormalities occur during operation, it can automatically stop and display the reason for timely troubleshooting. It can be used alone or connected with blister packaging machines and other equipment to form a production line, so the Cartoning Machine effectively guarantees the loading of items. Box quality and safe operation of the mechanism.
The whole Cartoning Machine continuously pushes the material and packs the carton, the action of each actuator is coordinated, stable and reliable, and the coordination is good. The Cartoning Machine push plate device is equipped with an alarm and shutdown system for products not entering the box, which effectively guarantees the quality of the boxing of goods and the safe operation of the mechanism.
The continuous-moving box opening system and pull-open box opening mechanism of the Cartoning Machine are more stable and reliable, and the servo feeding mechanism is stable and reliable. Cartoning Machine air pressure and vacuum protection shutdown system, door cover opening automatic detection shutdown device, etc., to ensure the safety of the operation of the Cartoning Machine. Very simple and fast product size change and adjustment can be made through the dial handwheel. Frequency conversion speed regulation, Cartoning Machine PLC automatic control, touch screen Operation, Chinese and digital display, simple operation, stable system operation. Main drive overload protection, fault diagnosis prompt, fault automatic shutdown.
